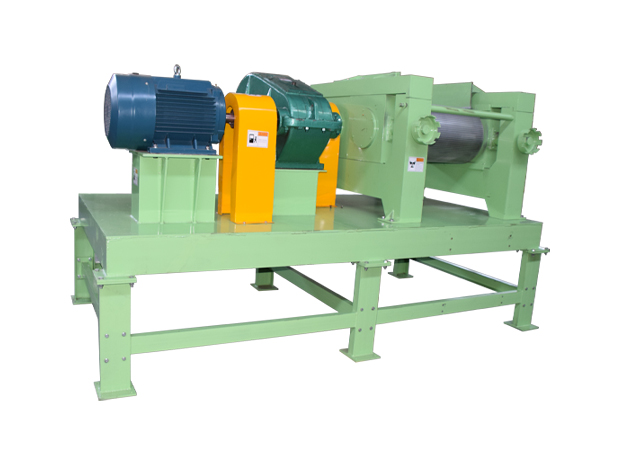

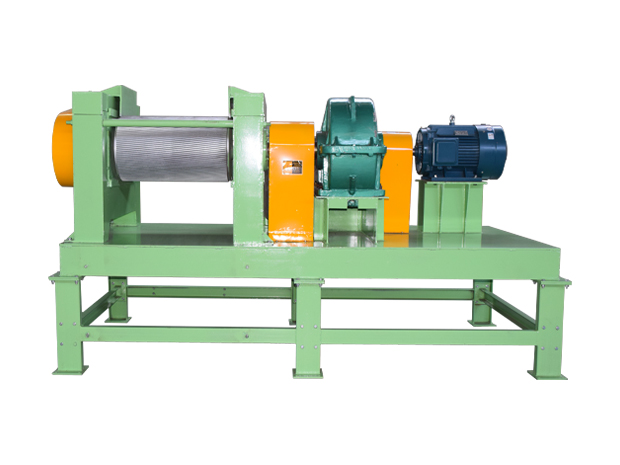

Type: Rubber Cursher Mill Double-roller Mill
Power(kw): 45.37
Capacity: 500kg/hour
Application: Mainly used in further crushing the rubber block, separating wire and rubber granules, get 10-30 mesh rubber granules or powder.
● It's mainly used in further crushing the rubber block, separating wire and rubber granules, get 10-30 mesh rubber granules or powder.
● This equipment consists of smooth roller, groove roller, chassis, pedestal, clearance adjustment device, safety gasket, lubrication system, transmission systme cooling unit and electical control systme, etc.
● Roller working length: 800mm,
● Maximum roll distance: 15mm, the gap can be adjusted,
● Roller Material: Cast Steel,
● Also can separate the small steel wire from rubber.
| Model | LDT450 |
| Capacity | 500kg/hour |
| Power(kw) | 45.37 |
| Motor rotating speed(r/min) | 980 |
| Input rubber size(mm) | Under 50 mm |
| Groove roller working diameter | 460mm |
| Diameter of inclined groove roller | 460mm |
| Machine weight(kg) | 4290 |
