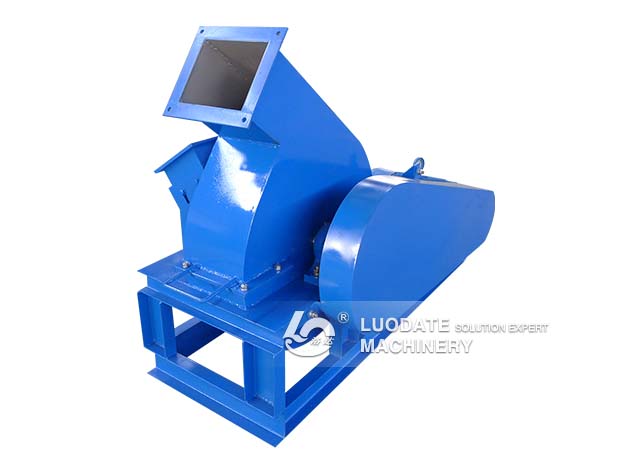

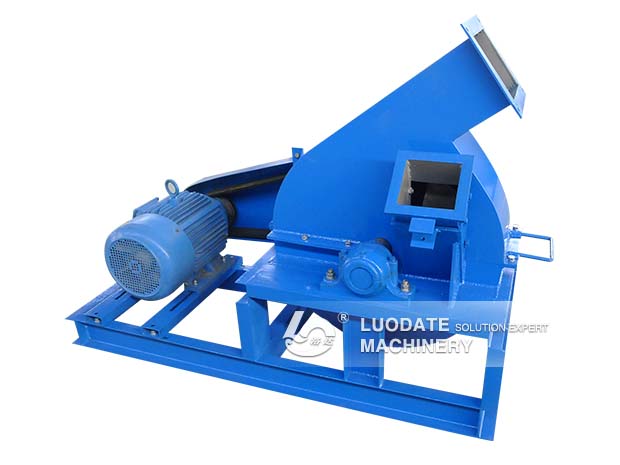

Type: LDT series Wood Disc Chipping Machine
Power(kw): 15 – 90
Capacity(t/h): 1 – 20
Appication: Use for orchard, garden, paper mill, particleboard factory, fibreboard factory,wood, etc.
Disc chipper is mainly used for cutting logs, get the better quality of wood chips, mostly used in pulp and paper mill;
Disc chipper blade includes ordinary chipper (4-6 knives) and multi-chip (6-8 knives).
Chipper feeding method has oblique mouth feeding and flat mouth feeding (or horizontal feeding).
Long shavings usually adopt flat mouth feeding. Short logs and slab shavings adopt tilted feeding and flat feeding.
| Model | Power (kw) | Mainshaft speed (r/min) | Blade quantity (pieces) | Cutterhead diameter (mm) | Weight (kg) | Capacity (t/h) |
| 500 | 15 | 600 | 4 | 500 | 300 | 1-2 |
| 600 | 22 | 600 | 4 | 600 | 400 | 2-3 |
| 800 | 30 | 600 | 4 | 800 | 650 | 4-5 |
| 950 | 37 | 600 | 4 | 950 | 800 | 6-8 |
| 1100 | 55 | 600 | 4 | 1100 | 1650 | 10-12 |
| 1210 | 75 | 600 | 4 | 1210 | 2500 | 12-15 |
| 1410 | 90 | 600 | 4 | 1410 | 3200 | 15-20 |
