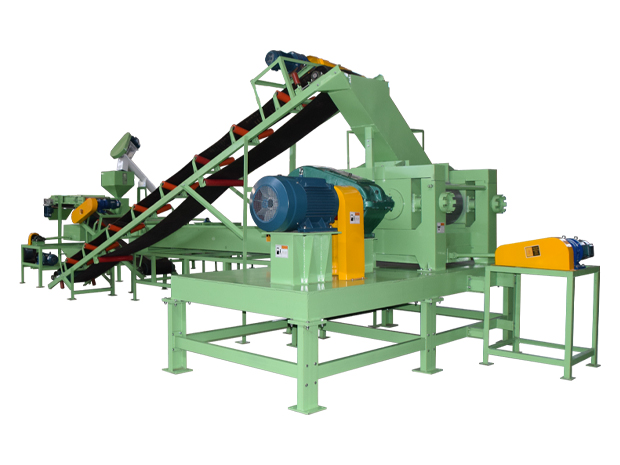

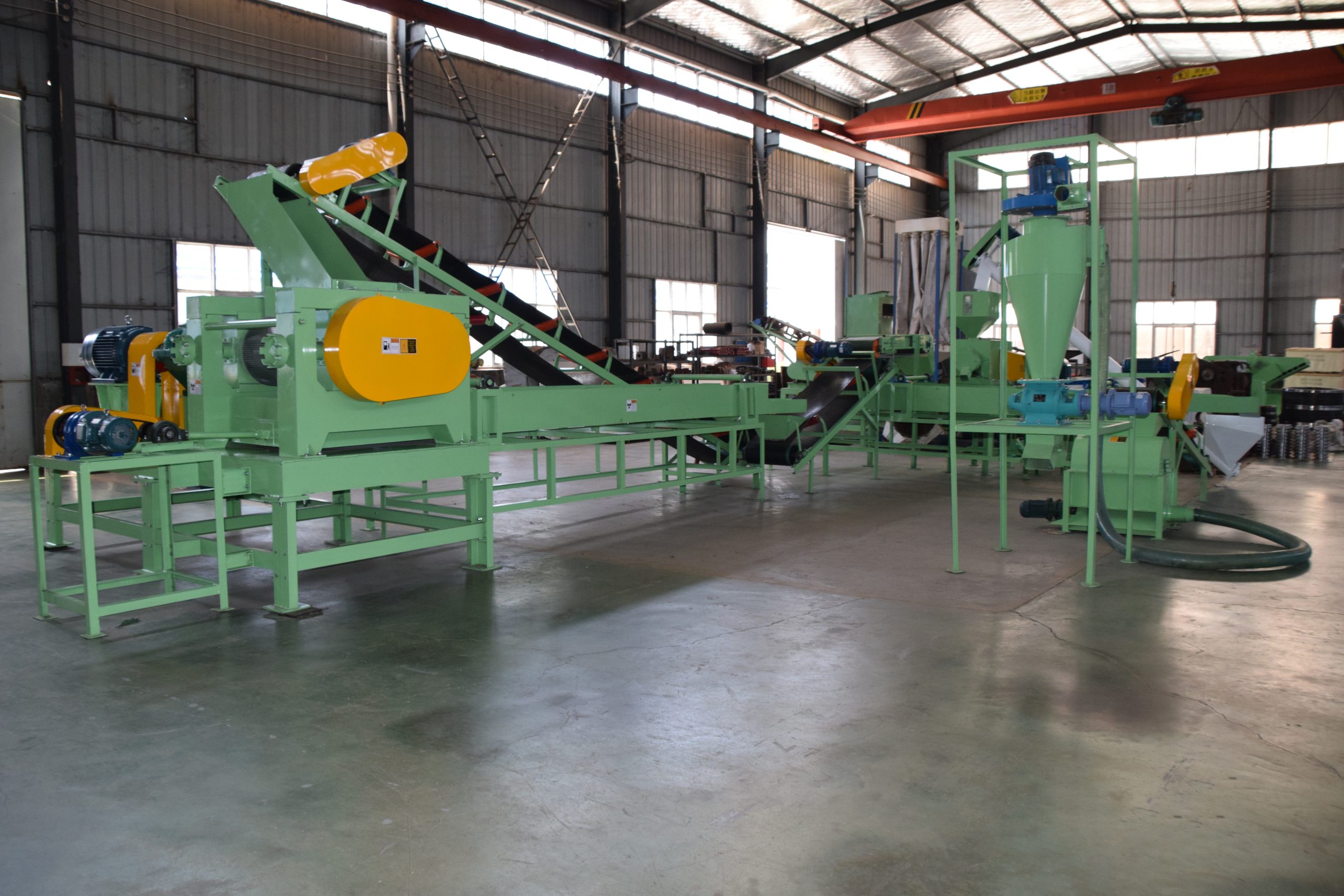

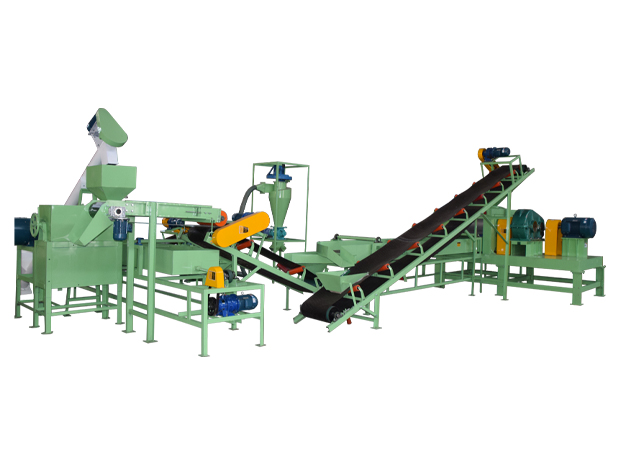

Type: Automatic Rubber Crushing Production Line
Power(kw): 15 – 160
Capacity(t/h): 5 – 60
Appication: Used to grind rubber tire blocks into small particle size rubber powder.
● The automatic rubber crushing production line is a production line specially used to process waste rubber products, such as waste tires, soles, gaskets, etc., and process them into small-size, high-value-added rubber powder through crushing, grinding and other processes.
● The production line has the advantages of simple operation, zero environmental pollution, high production efficiency, and small rubber powder particle size. The output rubber powder particle size can reach 5-100 mesh, and batch production can further reduce costs, making it economically worth investing.
● The main features of the rubber powder line include high production efficiency, high degree of automation, environmental protection and energy saving, and a wide range of applications.
Note: According to the requirements of final size, equipment can be customized.

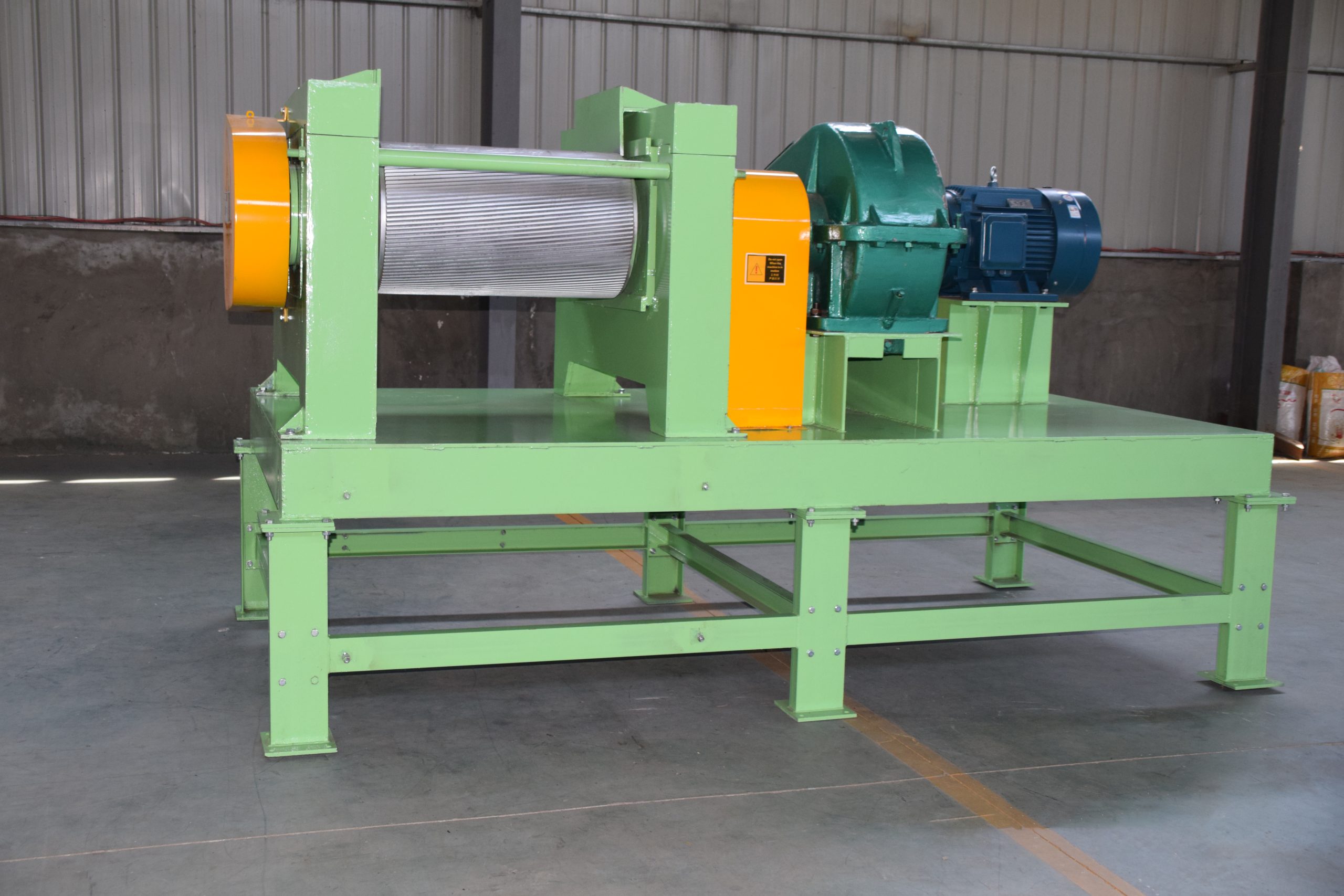

Double-Roller Rubber Crusher Mill
Double-Roller Rubber Crusher Mill Features
● It's mainly used in further crushing the rubber block, separating wire and rubber granules, get 10-30 mesh rubber granules or powder,
This equipment consists of smooth roller, groove roller, chassis, pedestal, clearance adjustment device, safety gasket, lubrication system, transmission systme cooling unit and electical control systme, etc.
● Roller working length: 800mm,
● Maximum roll distance: 15mm, the gap can be adjusted,
● Roller Material: Cast Steel,
● Also can separate the small steel wire from rubber.

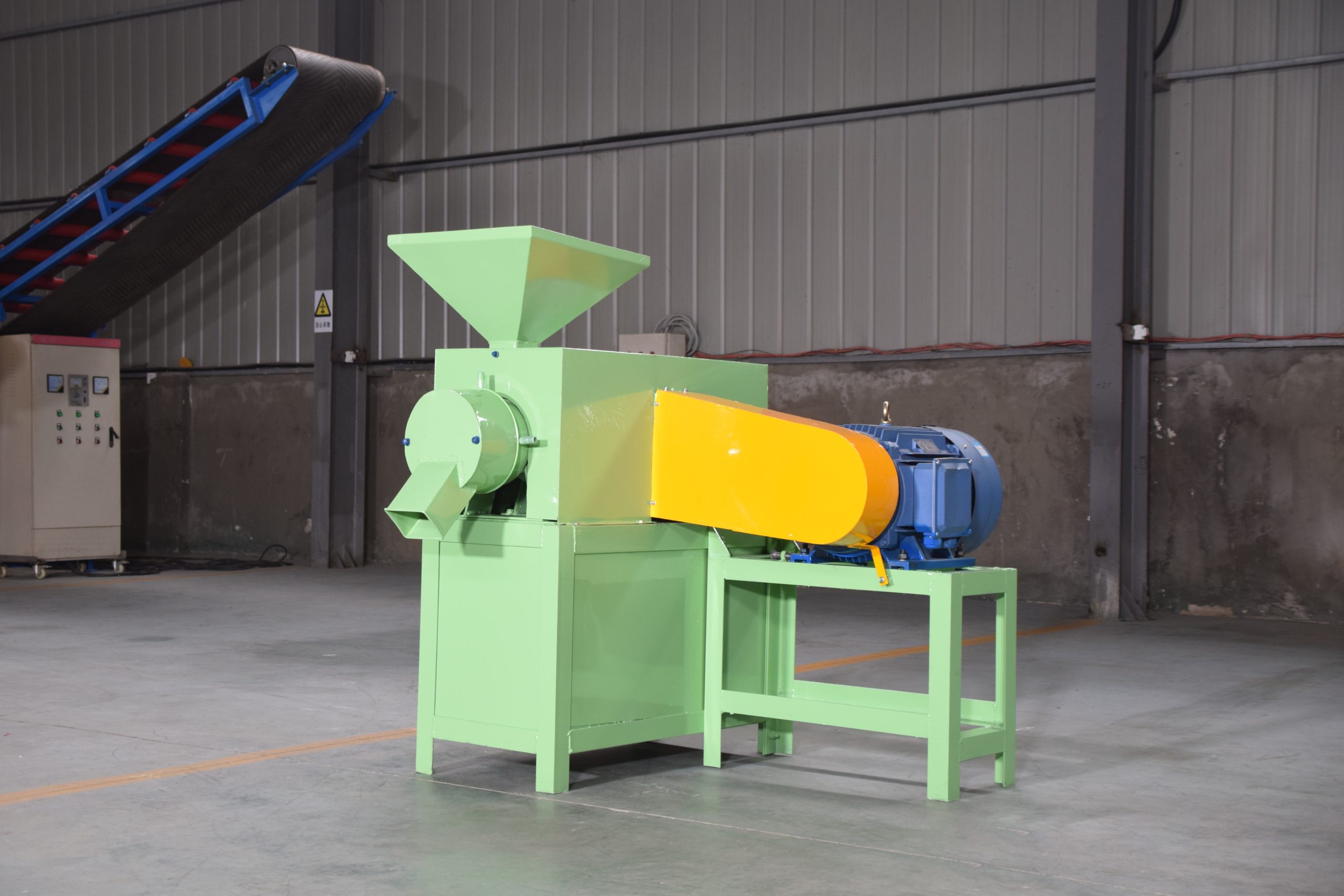

Fine Rubber Grinder
Fine Rubber Grinder Features
● Grinding the rubber granules into fine rubber powder.
● Rubber Grinder(Fine type)
● Power: 15kw
● Grinding the materials from 2-6mm to 10-80mesh.
Double-Roller Rubber Crusher Mill
| Model | LDT450 |
| Capacity | 500kg/hour |
| Power(kw) | 45.37 |
| Motor rotating speed(r/min) | 980 |
| Input rubber size(mm) | Under 50 mm |
| Groove roller working diameter | 460mm |
| Diameter of inclined groove roller | 460mm |
| Machine weight(kg) | 4290 |
Fine Rubber Grinder
| Model | Power(kw) | Input size(mm) | Output size(mesh) | Weight (kg) | Dimensions (mm) |
| Rubber Grinder(Fine type) | 15 | 2-6 | 10-80 | 510 | 1850*1300*3000 |
